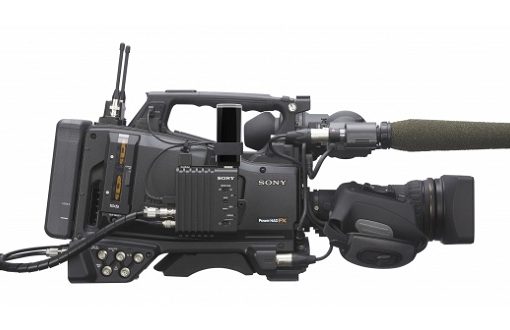

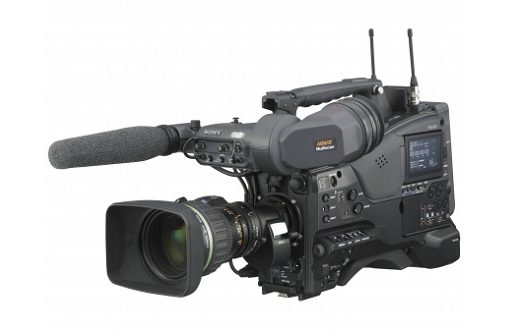

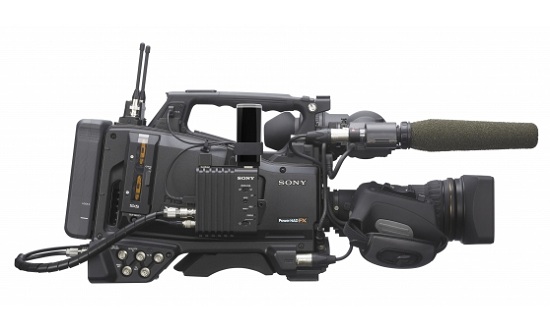

Sony PMW 500 XDCam

Category:

The PMW-500 is Sony Professional’s first XDCAM HD422 Camcorder with solid state recording. It supports full-HD 422 50-Mbps MXF record and playback based on highly developed MPEG-2 Long GOP compression technology. Uniquely, it can also be switched to record in HD 420 35-Mbps MP4 format which makes for seamless integration when used alongside XDCAM EX models.

Its 2/3-inch type three Power HAD FX CCD sensors deliver the same outstanding picture quality and low-light performance as the acclaimed PDW-700, however it records onto Solid State SxS media rather than optical Professional Disc.

The exceptionally ergonomic chassis is a development of the acclaimed PDW-700/F800, while already class-leading power consumption is further reduced along with weight for superb on-location usability.

Sony’s XDCAM product range sets the benchmark for high speed, exceptionally flexible, file-based workflow. XDCAM Professional Disc products were first introduced in 2004, followed by high-speed memory-based XDCAM EX in 2007. A common technology platform provides a unique hybrid workflow meeting a broad variety of customer application needs.

Reviews

There are no reviews yet.

Be the first to review “Sony PMW 500 XDCam”

  • Three 2/3-inch type Full-HD Power HAD FX CCDs

    The PMW-500 is equipped with three 2/3-inch type 2.2-megapixel full-HD progressive CCDs - the same sensors as used in Sony's acclaimed PDW-F800/700 XDCAM Professional Disc HD 422 camcorders. Based on Sony's Power HAD FX sensor technology and the latest on-chip lens structure, this type of CCD offers a high sensitivity of F12 at 50i (F11 at 59.94i).

  • SxS Memory Cards Combine High Transfer Speeds and High Reliability

    Both SxS PRO™ and SxS-1™* memory cards use the PCI Express interface to achieve an extremely high data-transfer speed of 800 Mbps, and can resist considerable shock (1500 G) and vibration (15 G). Also, a unique Salvage function serves to restore content damaged by power loss or memory disconnection during recording**.

  • HD 1920x1080 and 1280x720 Recording Using the MPEG HD 422 Codec

    The PMW-500 records and plays back high-definition video with 1920x1080 and 1280x720 resolutions up to 50 Mbps using MPEG-2 4:2:2P HL compression technology.

  • 24-bit Four-channel Audio Recording

    The PMW-500 records uncompressed four-channel, 24-bit audio in MPEG HD 422 mode or MPEG IMX mode. Each channel level can be adjusted independently by individual level controllers.

  • Selectable Recording Modes and Video Formats

    In addition to high-quality MPEG HD 422 50-Mbps mode, the PMW-500 can record and play back videos at different bit rates and in a variety of video formats. The PMW-500 supports both the broadcast-standard MXF file wrapper and IT-standard MP4 file wrapper. In UDF mode (MXF), which is compatible with the recording formats of the XDCAM™ Professional Disc Series, and in FAT mode (MP4/AVI), which is compatible with the XDCAM EX™ Series, the supplied XDCAM™ Browser, software can very rapidly convert files between formats, as no transcoding process is required.

  • Long Recording Time

    With highly efficient MPEG-2 Long GOP compression and a large-capacity SxS memory card, the PMW-500 can record high-quality HD 422 50-Mbps images for a long recording time of 110 minutes on a single 64-GB SxS memory card. The SxS memory card can be hot-swapped with two cards while shooting, without interrupting the recording.

  • Well-balanced Compact Body

    Designed to be very compact and ergonomically well balanced, the PMW-500 provides a high level of mobility and comfort in various shooting situations. It inherits the design of Sony's well regarded PMW-350/320 XDCAM EX™ camcorders. The main body weighs only 3.4 kg

  • Low power consumption

    The power consumption of the PMW-500 is only 29W

  • Digital Extender

    With optional CBK-HD02 boards, the Digital Extender function* of the PMW-500 enables images to be digitally doubled in size. Unlike lens extenders, the Digital Extender function performs this doubling in size without any F-drop phenomenon (i.e., without loss of image sensitivity).** *:This function is due to be activated at the end of March 2011.**: The Digital Extender function does not operate in 1080p mode, S and Q mode, or when working with XDCA-55 via CBK-HD02.

  • Focus Magnification

    A magnified camera picture (x2) is available in the viewfinder, simplifying precise focus adjustment.

  • Auto Focus Assist Function

    The Auto Focus Assist function enables operators to change focus positions manually using the focus ring in AF mode.

  • ALAC (Automatic Lens Aberration Compensation)

    This feature decreases any chromatic aberration caused by the lens. ALAC is activated only with some third-party lenses that incorporate compensation data. (Please check with lens manufacturers for ALAC support.)

  • Slow and Quick Motion Function

    The PMW-500 offers a powerful Slow and Quick Motion function that enables users to create elegant fast- and slow-motion footage. The PMW-500 can capture images at frame rates selectable from 1 fps (frame per second) to 60 fps in 720p mode and from 1 fps to 30 fps in 1080p mode, in increments of 1 fps. (With the PAL setting in UDF (MXF) mode, frame rates are selectable up to 50 fps in 720p mode and up to 25 fps in 1080p mode.)

  • Slow Shutter

    A maximum of 64 frames can be accumulated using the Slow Shutter function.

  • Interval Recording Function

    The Interval Recording function intermittently records one frame at pre-determined intervals. This is convenient for shooting over long periods of time, and also when creating special effects with extremely rapid motion.

  • Frame Recording Function

    The Frame Recording function records images for pre-determined frames every time the Record button is pressed. This is particularly useful for clay animation shooting.

  • Optical ND Filters and Electrical CC Filters

    The PMW-500 camcorder comes equipped with optical ND filters and electrical CC filters. With electrical CC filters, users can easily select a colour temperature -3200K, 4300K, 5600K, or 6300K - by rotation using a camcorder-assignable switch.

  • ATW (Auto Tracing White Balance) and Hold

    The Auto Tracing White Balance function automatically adjusts the camera's colour temperature according to changes in lighting conditions. If required, the user can hold auto tracing at a desired colour balance via an assignable switch.

  • Gain Control

    Gain Control(-6 dB to +42 dB) and Turbo Gain ("Shockless gain control") provide smooth transition in gain control.

  • IMX and DVCAM Recording and Playback*

    IMX and DVCAM™ format recording and playback are also supported by the optional CBK-MD01 which can realize smooth migration from current SD operation to near-future HD operation. * Please note this is a chargeable option.

  • Proxy Data Recording

    At the same time as recording high-resolution video and audio data, a low-resolution version of this AV data (called proxy data) can be recorded on SxS memory card. Proxy data enables amazingly high-speed file transfer and efficient batch editing workflow. (The Proxy Recording function works only in UDF (MXF) mode.)

  • Pool-feed Operation

    For pool-feed operation*, optional CBK-HD02 boards provide HD- and SD-SDI inputs and Analog Composite input. * This function is due to be activated at the end of March 2011.

  • Up-/Down- and Cross-conversion Capability

    The PMW-500 comes equipped with up- and cross-conversion systems for input signals, which provide operational flexibility. It also supports down-conversion from HD to SD in playback mode. (Down-conversion of input signals and up-/cross-conversion of output signals are not supported.)

  • Freeze Mix

    This function superimposes a previously recorded image onto the viewfinder, making it easy to shoot in the same framework as a previous take. Please note this function works only in HD mode.

  • Clip Continuous REC

    This mode allows users to create a single, large clip with multiple starts and stops in recording. The benefit of this mode is a faster transport speed for single clips - there is no overhead for the file open/close process. Please note this function works only in UDF (MXF) mode.

  • Easy-to-view 3.5-inch Colour LCD Monitor

    The PMW-500 is equipped with a large, easy-to-view, 3.5-inch colour LCD monitor with a high resolution of approx. 921,000 effective pixels. This LCD monitor enables operators to instantly review recorded footage, as well as access the camera's set-up menus and view status indications.

  • Eight Assignable Switches

    Frequently used functions can be programmed onto eight assignable switches on the PMW-500, allowing operators to make rapid changes when working in the field, convenient for shooting over long periods of time, and also when creating special effects with extremely rapid motion

Related Products

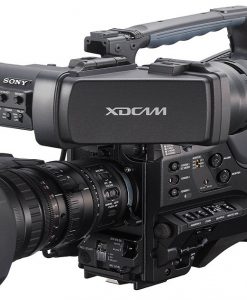

sony-pmw-320-1
